The Pit Lane Sim Racing configuration of the PT Actuator Scorpion series is a custom configuration of the Scorpion Series that is compatible with the Pit Lane Sim Racing FRS Formula Cockpit.
Configured with collaboration between PLSR and PT Actuator, it is designed to maintain performance under heavy duty cycles expected in commercial applications with the FRS. Upgrades such as enlarged motor, upgraded ball screw, and others, the PLSR configuration can support the FRS increased payload in commercial settings under the same rigorous 24/7 duty cycle PT Actuator tests its actuators.
With more than a decade of engineering high displacement sim racing and flight motion simulation systems, PT Actuator established itself as a trusted name to provide dependable, high performance motion simulation systems at incredible value.
The Scorpion series of actuators is the latest generation of linear actuators from PT Actuator, available in a very wide range of configurations to suit a wide range of payloads, degrees of freedom, and displacement for different budgets.
Key Features
- Specifically designed for sim racing & flight
- Premium construction for all Scorpion series backed by 24/7 work cycles
- 3-year warranty
- Over-the-air software updates
- Upgrade path to 4 DOF, 5 DOF, and 6 DOF configurations
- Maintenance free operation with heavy duty cycles for years
- 100 mm (4 in.) displacement for Scorpion E series
- Quiet Operation

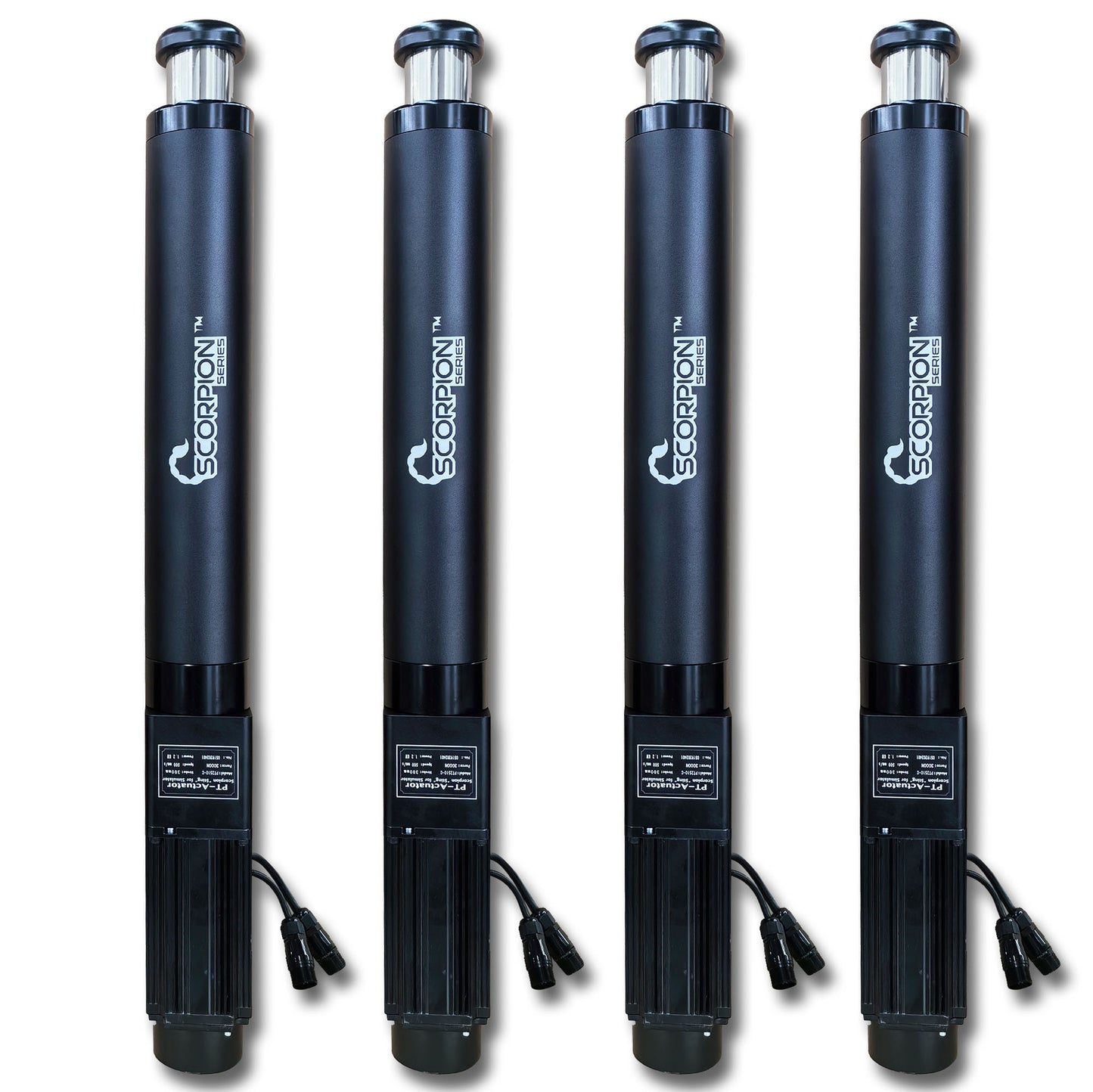

Scorpion Series
The Scorpion series is PT Actuator's latest generation of linear actuators. Designed specifically from the ground up as for sim racing and flight sim applications, Scorpion series actuators are all designed for heavy use to suit professional and commercial applications.
All Scorpion series actuator configurations underwent heavy duty cycle testing for their respective payloads. Unlike the PT Actuator entry level Champion GT series, the Scorpion series was designed with commercial applications in mind, backed by an industry leading 3-year warranty for personal and commercial use.
Range
The Scorpion series actuators offer one of the most flexible motion ecosystems on the market for sim racing and flight sim applications. With motion range from 100 mm (4") for the Scorpion E model and up to 450 mm (nearly 18") of displacement for the Scorpion U (ultimate) model, PT Actuator has an option for each requirement.
Likewise for payload and motion range, you can configure your PT Actuator Scorpion system up to a payload of 2,646 lb. (1,200 kg) and 4 DOF, 5 DOF, or 6 DOF applications.
Specifications
- Max payload: 2,6460 lb./1,200 kg (4 actuator system)
- Max displacement: 3.9 in./100 mm
- Max speed: 250 mm/s
- Single Controller
- 110V-220V power
- 1,200W (1.2 kW)
