NEW Qubic System Linear Actuators

If you have been waiting to make the jump to a proper motion system, Qubic System may just have the solution. A brand new linear actuator designed specifically for sim applications with a more compact size to bring motion to more systems. But don't let "compact" worry you. Given the incredible 3.94" (100 mm) stroke of the QS-220-PL actuators, compact is a relative term here.

Building on the same technology as the Qubic System QS-220 industrial-grade linear actuators, the QS-210 3 Degrees of Freedom (DOF) pack remains compatible with various Qubic System ecosystem products including QS-CH1 and the QS-CH2 2 DOF platform simulating yaw and surge (true acceleration and braking) turning it into a 5 DOF system.

Key Features

The QS-210 shares the same features as the QS-220 linear actuators utilized in other Qubic System motion cockpits, particularly the ultra low ow latency time and real-time vibrations.

Tailored for dedicated sim racers and drivers, the QS-210 motion system boasts additional sets of brackets that enable racers to install actuators in the most popular cockpits available on the market.

- 4x faster max speed than leading competitor: 400 mm/s maximum velocity on BOTH 230 V and 115 V power - 4 times faster

- up to 0.6 G* acceleration

- 0-100 Hz Real Time vibration simulation

- 4x faster response than leading competitor: less than 0.008 s (8 millisecond) response time

- Class-leading 60 mm stroke (2.4") displacement

- Super quiet operation

- Zero Maintenance*

Extended Set (3 DOF) Pitch, Roll & Heave

QS-220-PL Extended Set consisting of four actuators, two power cabinets and one motion controller. The 3DOF configuration is dedicated to all racers who expect the most realistic and precise simulation. Incredible levels of vehicle feedback to the driver allows feeling exactly what the vehicle is doing in real time. During the competition, drivers can feel every possible detail noticeable in a real race (including motor vibrations, road surface, bumps, shunting effects etc.)

What's in the Box?

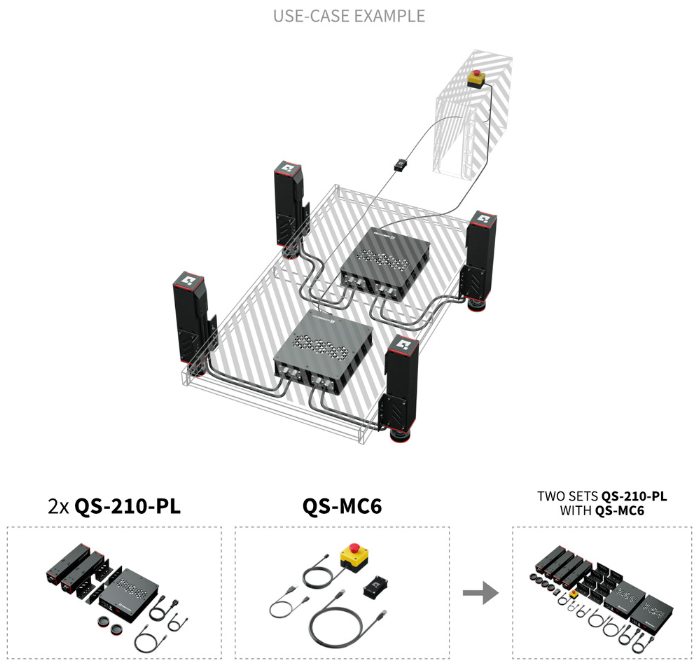

Boxes 1, 2 QS-210-PL motion set:

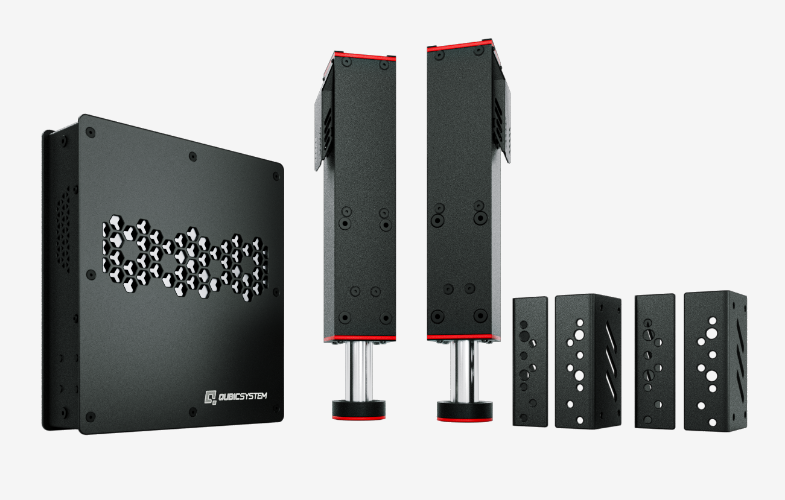

2x QS-L6 – linear actuator with cup holder
1x QS-SB2 – power cabinet (control module)
1x QS-SBML-2 – motion lock cable (up-link/down-link) – 2 m long
1x Power cable

Box 2. QS-MC6 controller set:
1x QS-SBML-1 – motion lock with additional 2 m long cable
1x QS-MBT-1 – M-BUS terminator
1x USB cable – 0,5 m long cable (USB micro B)
1x CAT.5E patch cord cable – 2 m long

As always at Pit Lane Sim Racing, what you see at checkout is what you pay. No additional fees or charges are due at delivery.

The Software

Even the most advanced hardware is nothing without good software. ForceSeatPM (platform manager) by Motion Systems company is a professional and specialized software for the platform and is click and play compatible with all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustments, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles.

The Platform Manager is a powerful engine, yet it’s simple to use meaning you can adjust levels of motion, bumps, roll and pitch and more with a click of a button.
Few main features:

• Over 80+ already integrated and supported racing games and professional simulation applications.
• Included VR Headway technology uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform movements from the VR tracking system causing your experiences to be more immersive, authentic and has huge impact on VR sickness compensation.
• The motor control algorithm has been developed to be used strictly in simulation application. The positioning signal is analyzed and preprocessed directly by the driver, so it is possible to change all driver parameters at basically zero cost (time). Drivers parse the incoming command as soon as the command arrives. It also allows to append different types of vibrations (per actuator) on driver level.
• Motion sickness compensation thanks to telemetry data provided in real time directly by the game’s engine and immediately injected to the hardware to perform.
• Equipped with Tactile Audio Based Feedback System that can use tactile transducers connected to sound card to generate additional effects on your cockpit.
• Thanks to having full control of the technology Motion Systems company can change control algorithm source code, introduce new parameters and features without waiting for 3rd party vendors. Simple software update can introduce new features to the customers.
• Motion SDK (FSMI or FSDI) for software developers is also available as an extra option. That powerful interface allows to add a motion platforms support to any application or game.

Compatible Titles

Racing Sim

• 22 Racing Series
• American Truck Simulator
• Assetto Corsa
• Assetto Corsa Competizione
• Automobilista
• Automobilista 2
• BeamNG.drive
• City Car Driving EE
• Copa Petrobras de Marcas
• Design it Drive it: Speedboats
• DiRT 3
• DiRT 4
• DiRT Rally
• DiRT Rally 2.0
• Drift Cyber Sport
• Euro Truck Simulator 2
• F1 2015
• F1 2016
• F1 2017
• F1 2018
• F1 2019
• F1 2020
• Formula Truck 2013
• Forza Horizon 4
• Forza Motorsport 7
• Game Stock Car
• Game Stock Car Extreme
• GP Bikes
• GRID 2
• GRID 2019
• GRID Autosport
• GT Legends
• GTR 2
• iRacing
• KartKraft
• Kart Racing Pro
• Live for Speed
• MX Bikes
• Project CARS
• Project CARS 2
• Project CARS 3
• Project CARS Pagani Edition
• Project CARS Pro
• Race 07
• RaceRoom Racing Experience
• rFactor
• rFactor 2
• Richard Burns Rally
• Touring Karts
• World Racing Series

Flight Sim

• Aerofly FS2
• Condor
• Condor 2
• DCS World
• DCS World 2.1 Alpha
• DCS World 2.5 Beta
• Falcon 4
• Falcon 4 BMS
• Microsoft Flight Simulator X
• Microsoft Flight Simulator 2020
• Flight Sim World
• IL-2 Sturmovik Cliffs of Dover
• IL-2 Sturmovik Cliffs of Dover Blitz
• IL-2 Sturmovik Great Battles
• Prepar3D v2
• Prepar3D v3
• Prepar3D v4
• Prepar3D v5
• War Thunder
• X-Plane 9
• X-Plane 10
• X-Plane 11

Training and Applications Sim

• Expansim
• GOATi Traffic Simulation
• Matlab & Simulink
• Steel Beasts Pro
• VBS3
• VBS4

Gaming Sim

• NoLimits 2
• VR Regatta

Specs

Performance Mode (3 DOF)
Max Velocity: 400 mm/s
Max Acceleration: 0.6G*
Max Payload: 200 kg (441 lb.)

Heavy Duty Mode (3 DOF)
Max Velocity: 300 mm/s
Max Acceleration: 0.4G*
Max Payload: 250 kg (551 lb.)

Dimensions
Total length: QS-L1: 106 mm | 4.17 in, QS-SB2: 355 mm | 15.16 in
Total width: QS-L1: 92 mm | 3.62 in, QS-SB2: 300 mm | 11.81 in
Total height: QS-L1: 457-517 mm | 18-20.3 in, QS-SB2: 92 mm | 3.62 in
Cable length (QS-L1 actuator – QS-SB2 Power cabinet): 1150 mm | 45.2 in

Power
Power supply requirements: 115/230 VAC Single Phase
Average power consumption in 3DOF configuration:
◦ Performance Mode: 0.1 kW (230V), 0.1 kW (115V)
◦ Heavy Duty Mode: 0.2 kW (230V), 0.2 kW (115V)

Peak current for breaker specification in 3DOF configuration:
◦ Performance Mode: 8A (230V), 17A (115V)
◦ Heavy Duty Mode: 9A (230V), 17A (115V)
